What Are Passive RFID Tags? How They Work and Uses

Passive RFID tags are an efficient and cost-effective solution for tracking and identifying items across various industries. Unlike active RFID tags, which contain their battery, passive tags rely on the electromagnetic energy emitted by RFID readers to operate. When a reader sends out a signal, the tag captures this energy, allowing it to transmit its stored information back to the reader.

This battery-free design offers several advantages, including lower costs and minimal maintenance requirements. As a result, passive RFID tags are widely used in applications such as inventory management, supply chain tracking, access control, and asset management. In this blog, we will explore the mechanics of passive RFID technology, its benefits, and the diverse range of applications that make it an essential tool in modern logistics and operations.

Let’s start with the basics of passive tags.

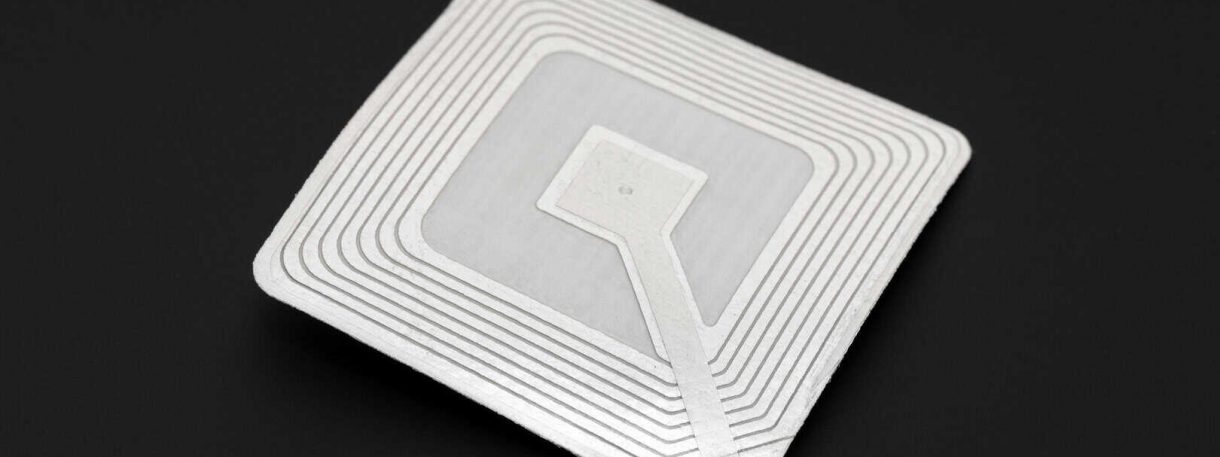

What Are Passive RFID Tags?

Passive RFID tags are small, battery-free devices designed to transmit data wirelessly. They operate by receiving an RFID reader’s Radio-frequency (RF) signal. When the reader emits this signal, the passive tag captures the energy and uses it to send back information. Because these tags do not have their power source, they are often simpler in design and more affordable than their active counterparts. This lack of an internal battery contributes to their lightweight and compact nature, making them easy to integrate into various applications.

Passive RFID tags are widely used across industries, from inventory management and supply chain tracking to access control and asset tracking. Their versatility and cost-effectiveness make them popular for businesses looking to improve efficiency and reduce operational costs.

How Passive RFID Tags Work

Passive RFID tags are critical in modern tracking and identification systems. Understanding how they function helps us appreciate their versatility and effectiveness in various applications. These tags operate without batteries, relying instead on energy harvested from RFID readers. Let’s delve into how passive RFID tags work, covering their operating principle, communication process, and frequency ranges.

Operating Principle

Passive RFID tags harness energy from an RFID reader’s emitted Radio-frequency (RF) signal. When the reader sends a signal, it creates an electromagnetic field that energizes the tag. The tag captures this energy and powers its internal chip, enabling it to transmit data back to the reader. This process allows the tag to respond with stored information, such as an ID number or specific data related to the asset it’s attached to.

Communication Process

The communication process between passive RFID tags and readers involves a series of steps:

  • Signal Emission: The RFID reader emits a radio frequency signal, creating an electromagnetic field.
  • Energy Harvesting: When a passive RFID tag enters this field, it captures energy from the signal.
  • Data Transmission: This energy powers the tag’s internal chip, allowing it to send back its stored data by modulating the electromagnetic field.
  • Reader Reception: The RFID reader receives and decodes the transmitted information, allowing the system to process the data accordingly.

This back-and-forth exchange occurs rapidly, often within milliseconds, enabling efficient tracking and identification.

Frequency Ranges

Passive RFID tags operate within specific frequency ranges, which affect their performance and applications. The main frequency ranges include:

  • Low Frequency (LF): Operating between 30 kHz and 300 kHz, with most LF tags functioning at 125 kHz or 134 kHz. These tags have a short read range, typically only a few inches, making them suitable for livestock tracking and access control applications.
  • High Frequency (HF): Operating between 3 MHz and 30 MHz, the most common frequency being 13.56 MHz. HF tags also have a short read range of about a foot and are used in contactless payments and library systems applications.
  • Ultra-High Frequency (UHF): Operating between 300 MHz and 3 GHz, the primary range for passive RFID tags is 860 to 960 MHz. UHF tags have a more extended read range, often several feet, and are commonly used in supply chain management and inventory tracking.

Understanding these frequency ranges is essential for selecting the right passive RFID tags for specific applications, as each range has strengths and limitations.

Difference Between Active RFID Tags and Passive RFID Tags

Radio Frequency Identification (RFID) technology is essential in modern tracking and identification systems. There are two primary types of RFID tags: active and passive. Each type has distinct characteristics, advantages, and applications, making them suitable for different use cases. Below, we explore the key differences between active and passive RFID tags.

Key Differences Between Active and Passive RFID Tags

Power Source: Passive RFID tags are powered externally by the reader, while active RFID tags contain an internal battery that provides power to the tag.

Tag Readability: Passive RFID tags are effective within a range of up to 3 meters, whereas active RFID tags can transmit signals over longer distances, typically up to 100 meters.

Energization: Passive RFID tags are energized only when a reader is present, while active RFID tags are always energized and ready to send data.

Magnetic Field Strength: Passive RFID tags require a strong electromagnetic field from the reader, while active RFID tags emit signals at a lower strength, powered by their internal battery.

Shelf Life: Passive RFID tags have a very high shelf life and can last indefinitely without expiration, whereas active RFID tags have a limited lifespan of about five years due to battery life.

Data Storage: Passive RFID tags typically have limited storage capacity, around 128 bytes, while active RFID tags can store larger amounts of data, making them suitable for more complex applications.

Cost: Passive RFID tags are generally more affordable than active RFID tags, which are more expensive due to their battery and advanced technology.

Size: Passive RFID tags are smaller and more compact, while active RFID tags are slightly bulkier because of their battery requirement.

Understanding these differences is essential for selecting the appropriate RFID technology for various applications, whether for inventory management, asset tracking, or more complex identification systems. Each tag type offers unique benefits that significantly enhance operational efficiency and effectiveness.

Applications of Passive RFID Tags: Unlocking Potential Across Sectors

Since active RFID is utilized less often than passive RFID, most current RFID applications depend on passive RFID tags and readers. Here’s a list of passive RFID applications organized by popularity and the frequency range used for each application.

Most Popular Applications

  • Event Ticketing: HF/NFC RFID tags streamline entry and validate tickets at events and venues.
  • Pet Tracking: LF RFID tags assist owners in locating lost animals by tracking their pets.
  • Supply Chain Management: UHF RFID tags enable real-time tracking of products throughout the supply chain.
  • Parking Management: UHF RFID tags facilitate access and payments in parking management systems.

Up & Coming Applications

  • Manufacturing Asset Tracking: UHF RFID tags monitor equipment and components in real-time during production.
  • Cold Chain Monitoring: UHF RFID tags track temperature-sensitive products throughout transportation and storage.
  • Smart Shelving: HF/NFC or UHF RFID tags facilitate inventory management and restocking in retail environments.
  • Healthcare Equipment Management: HF/NFC or UHF RFID tags help track medical equipment and supplies, enhancing operational efficiency.

Advantages of Passive RFID Tags: Key Benefits for Modern Applications

Passive RFID tags are increasingly favored across industries due to their significant advantages. They are compact, cost-effective, and offer reliable performance with reduced susceptibility to electromagnetic interference. These benefits make passive RFID tags an excellent choice for enhancing efficiency and accuracy in modern tracking and identification systems.

Life Span Dependent on the Working Environment

The durability of passive RFID tags is influenced by the materials used in their construction and the conditions in which they operate, allowing them to function effectively over extended periods.

Compact Size

Passive RFID tags are smaller than active ones, making them easier to integrate into various applications. This compact design also contributes to lower manufacturing costs.

Cost-effective Solution

The small size and simple design of passive RFID tags justify their low manufacturing costs, making them a budget-friendly option for businesses. This affordability enables broader implementation across different sectors.

Reduced Electromagnetic Interference

Passive RFID tags are less susceptible to electromagnetic interference than active ones, ensuring reliable performance in environments where signals might be disrupted. This characteristic enhances their effectiveness in various applications, from retail to logistics.

What You Need to Know About Battery-Assisted Passive RFID Tags

Battery-assisted passive RFID tags, also known as semi-passive or semi-active tags, derive their name from the presence of an internal battery. While these tags still depend on RFID readers, their response mechanism differentiates them from traditional passive tags. In battery-assisted passive RFID tags, the internal battery powers the integrated circuits when it receives a radio frequency signal from the RFID reader. This allows the tags to return signals to the RFID readers more effectively.

Final Thoughts: The Future of Efficiency with Passive RFID at Lowry Solutions

Lowry Solutions is a leader in passive RFID technology, dedicated to providing innovative solutions that empower businesses to enhance asset visibility, streamline operations, and boost overall efficiency. As industries evolve and require more precise tracking and management capabilities, our extensive range of passive RFID products and services is tailored to meet those unique needs. From low-frequency to ultra-high-frequency RFID tags and labels, we equip our clients with the tools necessary for successful implementation and operation, ensuring they can fully leverage the advantages of passive RFID technology.

With our expertise in passive RFID tags, businesses can expect significant improvements in asset utilization, reduced errors, and enhanced operational efficiencies. Whether you operate in manufacturing, healthcare, retail, or logistics, our passive RFID technology can transform how you manage assets and information, providing you with accurate tracking and streamlined processes tailored to your specific needs.

Don’t let inefficiencies back your business—take the next step towards enhanced visibility and productivity. Reach out now and discover how Lowry Solutions can help you achieve your goals and stay ahead in today’s competitive landscape.

Frequently Asked Questions

Passive RFID tags rely solely on energy from the RFID reader to operate, while Battery-assisted Passive (BAP) RFID tags contain a small battery that helps boost their performance. This allows BAP tags to have a more extended read range and faster response times than standard passive tags, making them suitable for more demanding applications.

Businesses can effectively implement passive RFID technology by:

  • Conducting a Needs Assessment: Identifying specific tracking and management requirements is essential to determine the best approach for implementing passive RFID technology.
  • Choosing the Right Tags and Readers: Selecting the appropriate tags based on the environment and application is crucial for ensuring optimal performance.
  • Integrating with Existing Systems: It is important to ensure that RFID solutions work seamlessly with current operations to maximize efficiency and effectiveness.
  • Training Staff: Providing comprehensive training for employees on the effective use of technology is vital for successful implementation.
  • Monitoring and Optimizing: Continuously assessing performance and making necessary adjustments will help maintain and improve the system’s effectiveness over time.

The retail, healthcare, manufacturing, and logistics industries greatly benefit from passive RFID tags. In retail, these tags improve inventory management and help reduce theft. In healthcare, passive RFID tags track medical equipment and manage patient records effectively. The manufacturing industry employs them for work-in-process tracking, which enhances overall efficiency. Logistics companies rely on passive RFID for improved shipment tracking and visibility throughout the supply chain.

Yes, environmental factors can impact passive RFID tags. Metal surfaces and liquids can interfere with signal transmission. Extreme temperatures may affect durability, while physical obstructions like walls can weaken signals. Radio frequency interference from other devices can also disrupt communication between tags and readers.

The costs associated with deploying passive RFID systems can vary significantly. Tags generally have a wide price range, depending on their type and features. Fixed readers are available at various prices, while handheld readers also fall within a specific range. Additionally, software and installation expenses can contribute to the overall investment. Smaller deployments may require a modest budget, while larger implementations often necessitate a more substantial investment.
