RFID Technology Types

Radio frequency identification (RFID) technology has become much more common across a number of industries, but there are a variety of different types of RFID technology, tags, and readers — each uniquely suited to different types of applications.

RFID tags can be classified by the radio frequency range they use to communicate (low, high, or ultra-high), and the way the tag communicates with the reader (active or passive). Listed below are the different types of RFID technology, their capabilities and limitations, and the types of applications for which they are best suited.

RFID is regulated by ISO 18000-63 which is promoted by the RAIN RFID Alliance. Standards are industry specific and are regulated or standardized at the national, regional, and global levels. This ensures that RFID tags work with any reader and do not interfere with each other.

What’s the Frequency?

RFID tags can be grouped into three categories based on the range of frequencies they use to communicate data: low frequency (LF), high frequency (HF) and ultra-high frequency (UHF). Generally speaking, the lower the frequency of the RFID system, the shorter the read range and slower the data read rate.

RFID Technology Different Types

Credit: Nana Smirnova

RFID Frequency Types

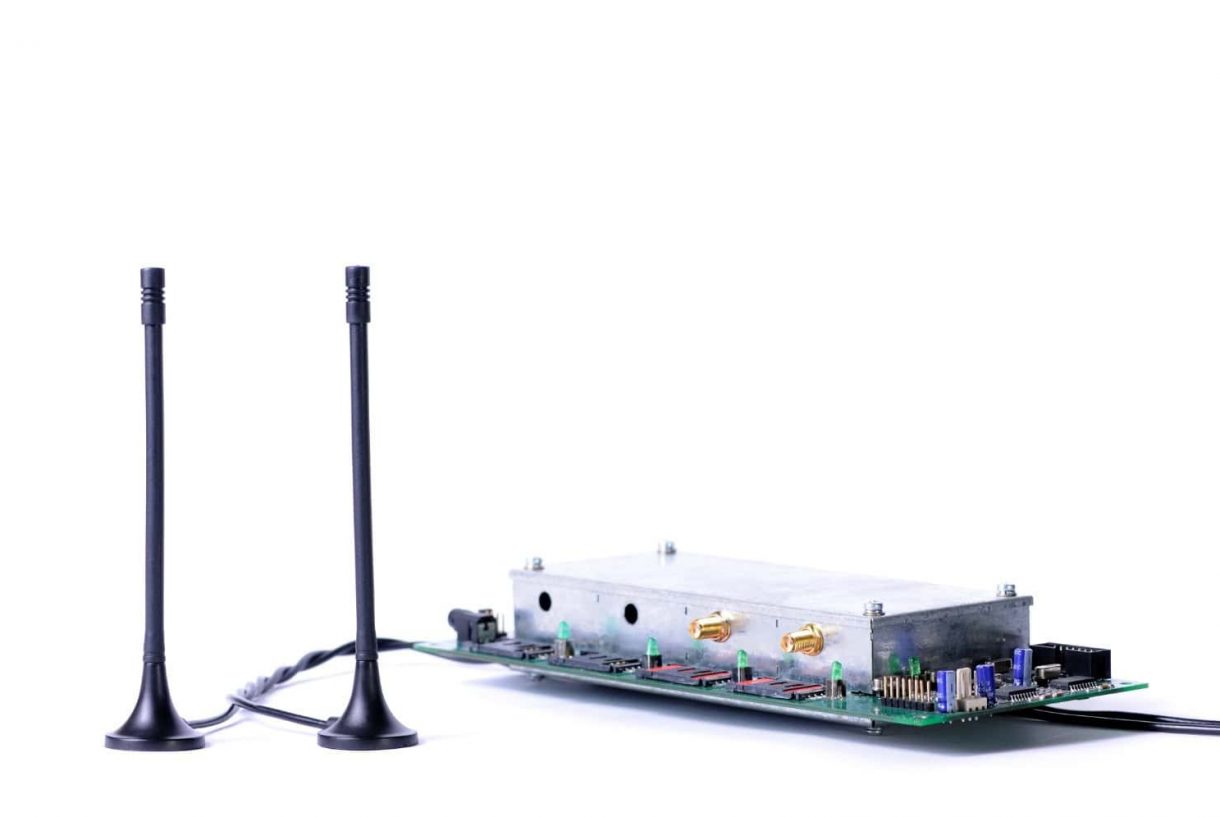

Low Frequency (LF) RFID:

These RFID systems operate in the 30 KHz to 300 KHz range, and have a read range of up to 10 cm. While they have a shorter read range and slower data read rate than other technologies, they perform better in the presence of metal or liquids (which can interfere with other types of RFID tag transmissions). Common standards for LF RFID include ISO 14223 and ISO/IEC 18000-2. LF tags are used in access control, livestock tracking, and other applications where a short read range is acceptable.

High Frequency (HF) RFID

HF systems operate in the 3 MHz to 30 MHz range and provide reading distances of 10 cm to 1 m. Common applications include electronic ticketing and payment and data transfer. Near Field Communication (NFC) technology is based on HF RFID and has been used for payment cards and hotel key card applications. Other types of smart card and proximity card payment and security systems also use HF technology. Standards include ISO 15693, ECMA-340, ISO/IEC 18092 (for NFC), ISO/IEC 14443A and ISO/IEC 14443 (for MIFARE and other smart card solutions).

Ultra-High Frequency (UHF) RFID

These systems have a frequency range between 300 MHz and 3 GHz, offer read ranges up to 12 m, and have faster data transfer rates. They are more sensitive to interference from metals, liquids, and electromagnetic signals, but new design innovations have helped mitigate some of these problems.

UHF tags are much cheaper to manufacture, and as such are commonly used in retail inventory tracking, pharmaceutical anti-counterfeiting, and other applications where large volumes of tags are required. The EPCglobal Gen2/ISO 18000-6C standard is a well-known global standard for item-level tracking applications.

Check out real-world examples of UHF RFID applications and ROI with our case study on Returnable Container tracking or our white paper “Returnable Container Tracking: Challenges, Benefits and Financial Impact.”

Types of RFID Tags

There are two other common classifications of tags, depending on how the tag communicates with the reader: passive or active.

Active RFID Tag

Active RFID tags have their own transmitter and power source (usually a battery) onboard the tag. These are mostly UHF solutions, and read ranges can extend up to 100 m in some instances. Active tags are usually larger and more expensive than their passive counterparts and are used to track large assets (like cargo containers, vehicles, and machines). Active RFID tags are also often equipped with sensors that measure and transmit temperature, humidity, light, and shock/vibration data for the objects they are attached to.

There are two types of active tags. Transponders only “wake up” and transmit data when they receive a radio signal from a reader. For example, a transponder attached to a vehicle in a toll payment or checkpoint control location would only be active when passing through a particular gate. This helps conserve battery life.

Beacons, on the other hand, emit a signal at a pre-set interval. This type of active tag is used in real-time location systems (RTLS) for tracking anything from wheelchairs at a hospital to large cargo containers at a shipping dock.

Passive RFID Tag

In passive RFID solutions, the reader and reader antenna send a signal to the tag, and that signal is used to power on the tag and reflect energy back to the reader. There are passive LF, HF, and UHF systems. Read ranges are shorter than with active tags and are limited by the power of the radio signal reflected back to the reader (commonly referred to as tag backscatter).

Passive tags are usually smaller, less expensive, and more flexible than active tags. This means they can be attached or even embedded on a wider variety of objects. Passive UHF tags are commonly used for item-level tracking of consumer goods and pharmaceuticals, for example.

Battery-Assisted Passive (BAP) RFID Tag

A third, hybrid type of RFID tag has also emerged. BAP systems, or semi-passive RFID systems, incorporate a power source into a passive tag configuration. The power source helps ensure that all of the captured energy from the reader can be used to reflect the signal, which improves read distance and data transfer rates. Unlike active RFID transponders, BAP tags do not have their own transmitters.

Learn more about our tracking solutions:

Materials

In addition to frequency bands and power level, RFID tags are made from different materials to suit different purposes. RFID tags can be made from almost any durable material capable of holding an RFID chip. This ranges from various plastics and epoxies to metals, ceramics, Teflon, and proprietary materials. Every application of RFID is unique, and the material should be fit to purpose.

Heat Resistant

There are several applications that require RFID tags to be heat resistant. Whether it needs to go down an assembly line, into an oil and gas pipe, or through the laundry, an RFID tag can be put in a number of heat resistant and even fireproof materials.

Heat resistant RF tags come in standard (up to 450° F), extreme (up to 550° F), and ultra-high (up to 750° F) heat resistance. They can be made out of a variety of materials including nylon, teflon, ceramic, or FR4 as well as proprietary materials. Basically, as long as the RF tag can be contained within the heat resistant material and as long as an RF tag reader can read it, it can be used to house an RFID chip.

Liquid Resistant

In addition to high heat, RF tags sometimes need to come into contact with liquid. Whether it’s water, cleaning chemicals, or bodily fluids, liquids can cause damage to RF tags if not properly protected. For that reason, there are a variety of RFID tag types that are liquid resistant.

An additional complication to the material used to hold the RFID chip is the manner in which it is affixed. Many adhesives degrade under exposure to water or chemicals. In addition to liquid resistant adhesives, RFID tags can be sewn into laundry or contained in small, durable boxes.

RFID Technology Types

Credit: National Cancer Institute

Applications of RFID Technology

There are a variety of applications of RFID systems. The particular RFID technology you choose to use will depend greatly on the industry and application of the RF tag. Here are just some of the applications of RFID technologies.

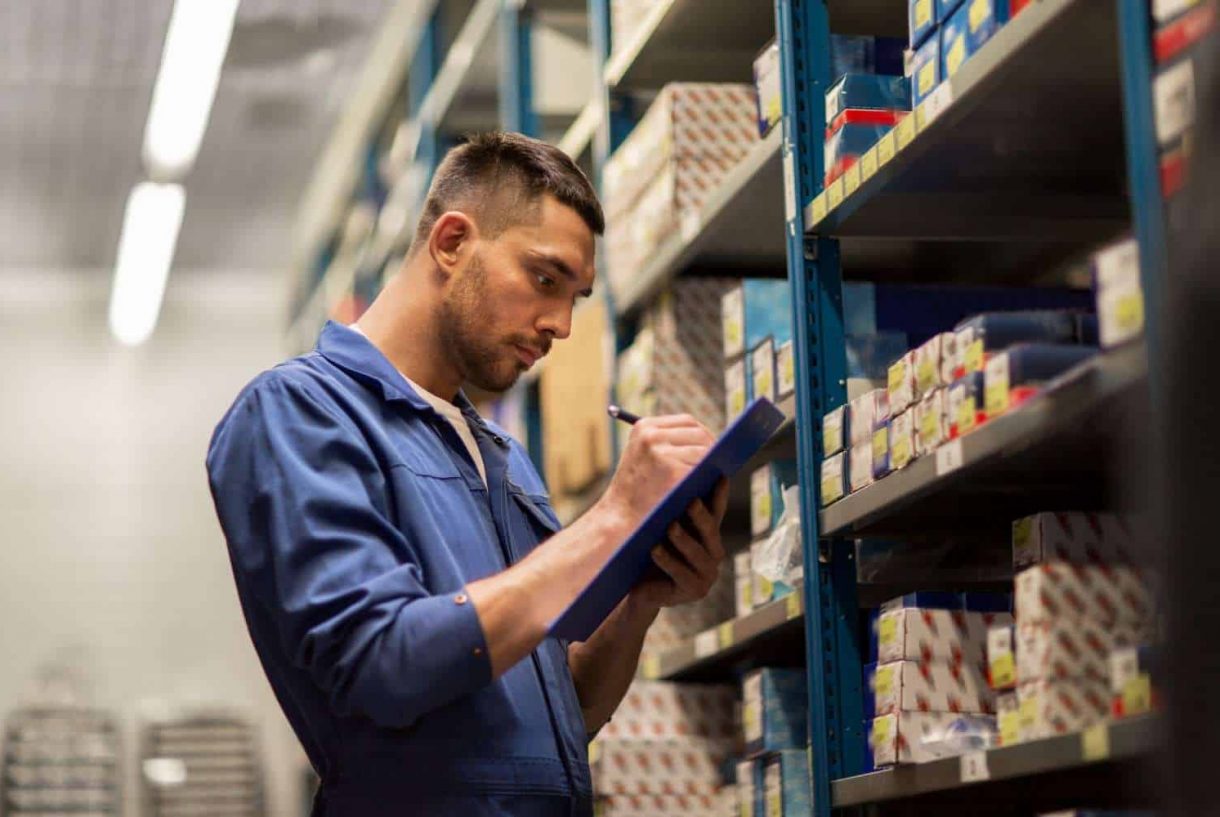

Assets, Inventory, and Parts Tracking

One of the principal uses of RFID systems is for asset, inventory, and parts tracking. This is because RFID tags can be used to track not just individual items, but also batches. Thus, not only can RFID be used to track items across your enterprise, but also to conduct lightning-fast audits of inventory.

RFID tags work with mobile devices that connect to an item tracking software. Many of these software solutions allow integration with your warehouse management system and enterprise resource planning software. With RFID tracking, there’s no more endless searches for missing parts or inventory.

Fleet Management

RFID can also be used to manage fleets. With the same mobile devices, you can scan RFID tags affixed to your vehicles. With active RFID tags and GPS, know exactly where all of your vehicles are.

In addition to tracking vehicles, you can also use RFID solutions to track what inventory is on which vehicle. This allows shipping tracking for not only you, but also your customers. With data from your RFID system, you can analyze key performance indicators to see where your profit centers and cost sinks are.

Pharmaceuticals

Pharmaceutical companies have been adopting RFID technologies to manage recalls and prevent counterfeiting. With each RF tag given a unique identifier, individual bottles and other packages can be tracked across the supply chain from manufacture to the pharmacy.

RFID is great for product verification, too. With RFID, you can be sure that pharmacies know that they have drugs from you, the manufacturer, instead of a supplier of dangerous counterfeits. In addition, send out real-time recalls that can be quickly executed across the world.

Healthcare

In addition to pharmaceutical tracking, there are many uses of RF tags in healthcare settings. Hospitals need to have accurate inventories of supplies, and RFID systems make keeping accurate records as simple as the push of a button.

RFID is perfect for the medical setting. Because the RF tags can be made from almost anything, there is practically no application they can’t be used for. RF tags can be affixed to gurneys, attached to medical supplies, or even sewn into blankets.

Can Cell Phones Detect RFID Tags?

Mobile devices, including cell phones, can detect RFID tags when equipped with the necessary technology and connected to compatible tracking software. This integration is particularly valuable for businesses utilizing RFID for inventory and asset management.

Here’s a breakdown of how this process works:

  • Integration with Item Tracking Software:

Mobile devices interact with RFID tags through item-tracking software. This software facilitates seamless communication between the RFID tags and the mobile device, allowing for real-time tracking and data retrieval.

  • Warehouse Management System and ERP Integration:

Many RFID solutions are designed to integrate with Warehouse Management Systems (WMS) and Enterprise Resource Planning (ERP) software. This ensures a comprehensive approach to inventory management, linking RFID data with broader business operations.

  • Efficient Inventory Management:

RFID tracking eliminates the need for time-consuming manual searches by providing instant visibility into the location and status of items. This efficiency is crucial for businesses seeking to enhance their inventory management processes.

Is RFID and NFC the Same Thing?

RFID (Radio Frequency Identification) and NFC (Near Field Communication) share similarities in their underlying technology but differ in their applications and operational ranges.

Key Differentiators:

  • Operating Distance:

  • RFID operates at varying distances, ranging from a few centimeters to several meters, depending on the frequency used.
  • NFC, on the other hand, typically works within a range of a few centimeters, making it suitable for close-range interactions.

  • Communication Protocols:

  • RFID uses various communication protocols, such as LF (Low Frequency), HF (High Frequency), and UHF (Ultra-high Frequency), each with specific use cases.
  • NFC is a subset of RFID, primarily utilizing HF technology. It operates at 13.56 MHz and follows specific communication standards like ISO 14443 and ISO 18092.

  • Data Transfer Speed:

  • RFID offers faster data transfer rates, making it suitable for applications requiring quick and efficient communication.
  • NFC, designed for close-range interactions, operates at slightly slower speeds, prioritizing security and convenience.

While RFID and NFC share common technological foundations, their distinctive features make each suitable for specific applications. RFID confines broader operational ranges, catering to diverse requirements, while NFC excels in close-range interactions, particularly in contactless communication, transactions, and secure data exchange. Understanding their differences allows for optimal selection based on the specific needs of a given application.

The Right RFID Type for You

By matching the right type of RFID tag to your application, you can ensure a successful deployment and reap the full benefits of the technology. The different types of RFID technology allow you to get creative to solve real-world business problems. Make sure you get the most out of your RFID solution by downloading our whitepaper “Are You Realizing the Full Benefits of RFID?”

Frequently Asked Questions

The most common RFID frequencies are Low Frequency (LF), High Frequency (HF), and Ultra High Frequency (UHF). Each frequency has its applications and characteristics. LF RFID, operating at 125 or 134 kHz, is commonly used for animal tracking and access control. HF RFID, operating at 13.56 MHz, is widely used for applications like contactless payment and library management. UHF RFID, operating between 860 and 960 MHz, is prevalent in supply chain management and logistics due to its extended read range.

The transmission range of an RFID chip depends on its frequency and the type of RFID system. LF RFID typically has a read range of up to 10 cm. HF RFID can reach distances of up to 1 meter. UHF RFID systems can transmit data over several meters, with some systems capable of ranges exceeding 10 meters under optimal conditions.

LF RFID operates at frequencies between 30 and 300 kHz, providing short read ranges and slower speeds but high resistance to interference. HF RFID, operating at 13.56 MHz, offers moderate read ranges and quicker data transfer speeds, suitable for contactless payment and access control. UHF RFID, operating between 860 and 960 MHz, provides longer read ranges and faster data transfer rates, making it ideal for supply chain management and logistics.

RFID technology finds application in various areas such as inventory management, asset tracking, supply chain logistics, access control, pet and livestock monitoring, healthcare, retail, and contactless payments. Its adaptability effectively boosts operational efficiency and ensures data accuracy across diverse industries.

Choosing the right RFID technology involves assessing factors like read range, data transfer speed, environmental conditions, and cost. LF RFID is suitable for short-range applications with high interference, while HF RFID is often used for medium-range and contactless needs. For long-range and high-speed requirements, UHF RFID is generally the best choice. Evaluate your specific application needs to select the most appropriate RFID technology.
