How to Select a Correct Tag – Understanding RFID Frequencies

RFID technology has transformed businesses globally, enhancing operations from manufacturing to supply chain management. For years, companies have relied on RFID tags and labels to monitor and track their assets, leading to cost savings, scalability, and significant profit growth.

Complete RFID solutions offer versatility for various applications by operating across diverse frequencies. However, choosing the right frequency is critical to align with specific business needs. This guide aims to simplify the selection process by providing insights into the capabilities and limitations of available frequencies, empowering businesses to make informed decisions and maximize the benefits of RFID technology.

Efficient Power Usage in RFID: How Tags Draw Power from Readers

RFID systems consist of tags, which are microchips equipped with antennas, and interrogators or readers, also equipped with antennas. Remarkably, RFID tags are compact and energy-efficient, eliminating the need for a battery to store information or communicate with readers. Instead, electromagnetic waves emitted by the reader energize these small tags. Finely tuned antennas capture the transmitted signals. Operating without a battery, passive RFID tags draw power from the reader’s field, activating the microchip’s circuits. Subsequently, the chip adjusts the waves it sends back to the reader, and the reader converts these modified waves into digital data.

Exploring RFID Technology: Comprehending RFID Frequencies

Choosing the appropriate frequency for RFID barcode applications largely depends on the assets being tracked or produced. Let’s delve into the capabilities of each frequency:

Low-frequency (LF): LF RFID, the most established frequency, is used in access control systems, animal and asset tracking, automotive control, healthcare, and point-of-sale applications. LF tags excel in environments with metallic surfaces, such as manufacturing plants and steel buildings, and materials like water, liquids, wood, and animal tissues. These passive tags rely on near-field inductive coupling for power and data transmission, offering a short read range of several inches. However, LF tags lack anti-collision capabilities, limiting simultaneous tag reading. They also have slower data transfer rates and limited storage capacity.

High-frequency (HF): HF RFID tags share similarities with LF tags but offer a slightly longer range of up to three feet. They utilize near-field inductive coupling and lack anti-collision features. While HF tags encounter issues with nearby metals, they are used in various applications such as patient tracking in hospices, transit ticket management, library book tracking, smart cards, and credit cards. The increased range of HF tags allows faster data transfer rates than LF.

Ultra-high Frequency (UHF): UHF RFID systems offer significantly extended read ranges of up to 20 feet, making them ideal for applications prioritizing range. UHF tags utilize backscatter or far-field radiative coupling and feature anti-collision capabilities, enabling the simultaneous reading of several hundred tags per second. While UHF systems offer faster data transfer rates compared to LF and HF, their shorter wavelength leads to signal attenuation. These systems are prevalent in manufacturing plants, warehouses, parking access control, and electronic tolls, where efficiency and speed are critical.

Microwave Frequency: Microwave RFID technology operates at higher frequencies than UHF and is capable of even longer read ranges. These systems are used in specialized applications requiring extended range and high-speed data transfer, such as highway toll collection and vehicle tracking. Due to their higher frequency operation, microwave RFID systems offer enhanced performance but may require specific considerations for deployment.

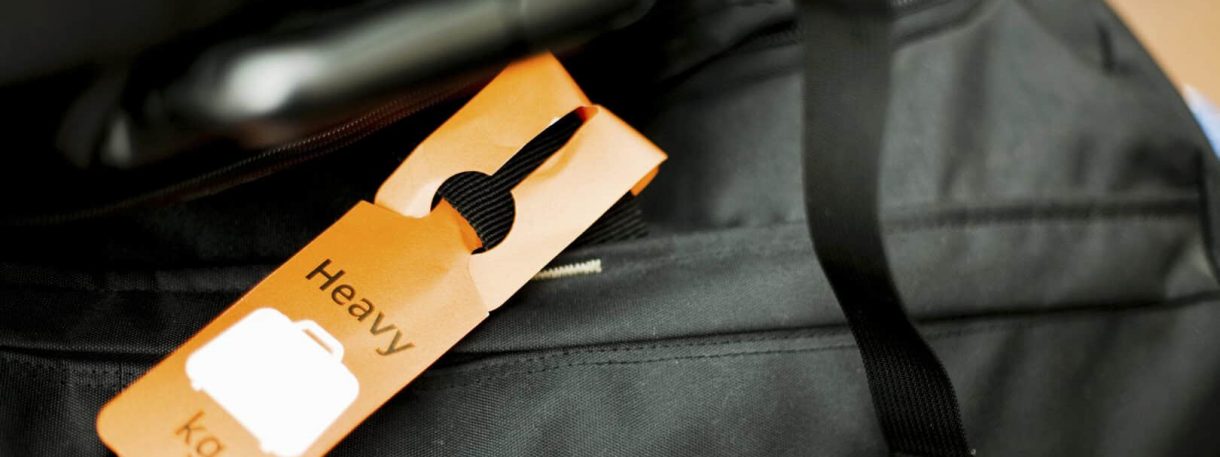

How To Select RFID Tags?

Selecting the right RFID tags involves various critical considerations, from understanding tag specifications to assessing environmental factors. Let’s explore the essential factors to guide you in making informed decisions when choosing RFID tags for your deployment.

Understanding Tag Size and Read Range for RFID Systems: The read range of RFID tags determines the distance at which RFID readers can detect and read them, with factors such as tag frequency, antenna design, and environmental conditions influencing this range. Additionally, tag size plays a significant role in determining the overall performance and effectiveness of RFID systems. Larger tags may offer longer read ranges, but they could be cumbersome for certain applications. On the other hand, smaller tags may have shorter read ranges but provide greater flexibility and ease of integration, especially in compact or crowded settings. Therefore, by considering tag size and read range, businesses can effectively optimize their RFID systems to meet specific operational requirements while ensuring optimal performance and usability.

Assessing Tag Durability in RFID Applications: In selecting RFID tags, it’s crucial to determine their durability to ensure they can withstand the conditions of the intended application environment. Factors such as exposure to extreme temperatures, moisture, chemicals, and physical impacts can affect tag performance and longevity. Choose tags constructed from robust materials and with protective coatings to enhance durability and resistance to environmental factors. Conduct thorough testing to verify tag reliability and longevity under anticipated operating conditions.

Considerations for Environmental Conditions in RFID Deployment: Environmental conditions play a significant role in RFID tag performance and reliability. Facets such as temperature fluctuations, humidity levels, water or chemical exposure, and metal or other RF-interfering materials can impact RFID system operation. Select tags rated for the specific environmental conditions of your deployment area to ensure optimal performance and longevity. Additionally, environmental factors should be considered during tag placement and installation to minimize interference and signal attenuation.

Selecting the Right Frequency for RFID Tags: The appropriate RFID tag frequency is crucial for optimizing system performance and compatibility with reader equipment. Low-frequency (LF), High-frequency (HF), and Ultra-high Frequency (UHF) tags offer different read ranges, data transfer rates, and anti-collision capabilities suitable for various applications. Evaluate the requirements of your RFID deployment, including read range, data transfer speed, and tag density, to determine the most appropriate frequency for your needs.

Evaluating Environmental Materials for RFID Performance: The materials used to construct RFID tags can significantly impact their performance and reliability in different environments. Tags made from plastic, paper, or metal materials may exhibit varying durability, flexibility, and resistance to environmental factors. Consider the specific requirements of your application environment when selecting tag materials to ensure optimal performance and longevity.

Meeting Compliance Requirements in RFID Implementation: RFID deployments must comply with regulatory standards and industry-specific requirements in many industries. These may include standards for data privacy, security, interoperability, and environmental impact. When selecting RFID tags, ensure they meet relevant compliance standards and certifications to avoid potential legal or operational issues. Implement robust data management and security protocols to safeguard sensitive information and ensure regulatory compliance throughout the RFID implementation process.

Wrapping Up!

Implementing RFID asset tracking systems promises increased efficiency, cost reduction, and operational improvements for organizations, provided the correct frequency is chosen based on their specific needs and applications. Business owners must thoroughly evaluate each RFID system, considering their advantages and limitations. Understanding the fundamentals of RFID technology and the available frequency options empowers businesses to select the ideal frequency that aligns with their unique requirements.
Choosing the right RFID label or tag is a strategic decision crucial to the success of your RFID implementation. Considerations such as RFID frequency bands, application-specific needs, environmental factors, and integration capabilities are critical in choosing tags that align with business objectives and perform optimally in operational settings. With careful planning and evaluation, RFID technology can drive visibility, operational efficiency, and business growth across diverse industries.

Choosing the Right RFID Tag: Frequency Insight from Lowry Solutions

Lowry Solutions, one of the leading RFID Software companies, simplifies the complexity and challenges of RFID technology, ensuring seamless navigation. Our expertise extends beyond frequency selection, harnessing the true capabilities of RFID technology for your business. Trust us to guide you through this evolving landscape.

Our dedicated team will help you find the perfect RFID tag frequency, empowering your operations for success. Contact Lowry Solutions today to discover the ideal RFID label or tag for your needs.

Frequently Asked Questions

The choice of RFID frequency influences factors such as read range, data transfer rate, and anti-collision capabilities, which are critical in selecting the appropriate RFID tag for specific applications.

Different RFID frequencies offer varying read ranges, data transfer speeds, and anti-collision capabilities, impacting tag performance in terms of range, reliability, and efficiency in data transmission.

Yes, certain industries or applications may benefit from specific RFID frequencies. For example, low-frequency RFID is commonly used in access control systems and animal tracking, while ultra-high-frequency RFID is preferred in manufacturing plants and large-scale warehouses.

Yes, Lowry Solutions offers expert guidance and support in selecting the most suitable RFID tag frequency based on your specific business requirements, application needs, and environmental conditions.

Yes, there may be regulatory considerations related to RFID frequency usage, particularly in industries such as healthcare and transportation. It’s essential to ensure compliance with relevant regulations and standards governing RFID frequency usage in specific regions or applications.
